SMP-AMxx
Why choose this model?
- High density multi-channel audio metering
- Mix and match modular cards and rears
- Flexible layout configuration
- Compact 1RU size
- Cost effective analogue and AES metering
- Simultaneous SDI/HDMI Screen Outputs
Complete solution
The SMP-AM-xx is a 1RU modular chassis with 6 modular slots, 2 of which are reserved for the Network and Control output cards. Audio input or output cards are available for the other 4 slots. Up to 2 independent dual output MultiViewer instances can be added to the 1RU SMP-xx frame.
The SMP-AM-xx allows up to 256 channels of embedded audio to be displayed as international standard bargraphs with a choice of scales/ballistics and a Loudness display including BBC PPM, DIN PPM, Nordic PPM, VU, Extended VU and AES/EBU
digital.
Audio Input Cards:
External audio can be input to the frame using specific audio
input cards available in three formats:
- AIPxxA - analogue only audio input card (up to 32 channels)
- AIPxxD - Digital only audio input card (up to 32 AES/EBU pairs) with sample-rate conversion for maximum flexibility
- AIP32AD - Analogue and digital audio input cards (up to 32 channels/AES/EBU pairs)
Audio output cards:
External audio output is provided by installing AES digital audio output cards.
output cards:
- AOPxxD - digital output card that can support up to 32 AES/EBU pairs
Digital audio cards have twice the effective channel capacity of analogue cards because analogue audio is transmitted as AES pairs comprising two discrete channels (though these are often just the left and right stereo components).
Multiple instances of these audio input cards may be installed, please see configuration rules for optimum placement of audio input cards in the multiviewer chain.
Great features
MODULAR DESIGN
- Compact 1RU Frame - ideal for OB Vans, or other space restricted application
- Modular design - offers a wide range of input / output solutions
- Redundant power supply to power up to 3 independent units
FULLY FEATURED LAYOUT DESIGN
- Control & Setup via LAN - comprehensive and easy to use browser based control via GUI
- Free-form scale & position - all video / audio tiles are fully customizable in scale and position and offer the choice to maintain, or deviate from standard aspect ratio.
- UMD entered via keyboard, LAN or serial cable
- Alarms for video, audio and metadata with outputs to GPI O/Ps, LAN and/or SNMP traps
- Assignable tallies via Open or TSL protocol using serial or IP connection
- NTP and Local Clocks and Timers
MONITORING AND ALARMS
- Embedded Audio Metering - Meter up to 16 channels of embedded audio per input via standard ballistically correct scales (e.g BBC PPM, Nordic PPM, Extended VU)
- Audio metering may be sourced from SDI embedded audio groups (PCM or Dolby-E metadata meter segment), or externally via optional analogue and AES/EBU inputs with sample rate conversion)
- Fully configurable audio metering up to 32 channels per video tile with left/right or split meters.
- Analog and digital clocks controlled by LTC input or NTP (Network protocol)
- Teletext subtitles display (WST on SD-SDI or OP-47 on HD-SDI)
- GV SW-P-O2, SW-P-08 and RollCall control
Specifications
Dimensions
Size: 445(W) x 44(H) x 511(D) mm
Size: 483(W) x 44(H) x 511(D) mm with rack mount brackets
Weight: 6 kg

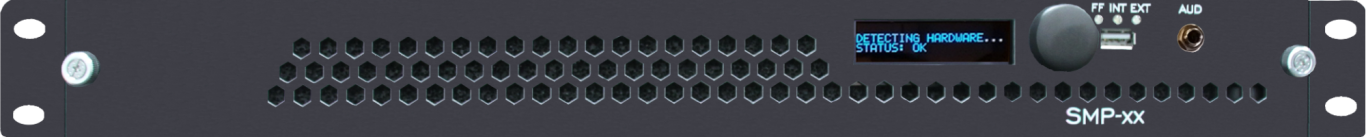

SMP-AMxx frame – 1U high 19” Rack Mounting Frame with removable front panel, temperature controlled fan assisted ventilation, 6 card slots, separate rear connector modules and power supply / fan status indicators
Cooling Fans
4 fans each 80x80x20mm nominal 6-12V operating range. 60 CFM 44.7dBA 0.31A 4.1W Sunon Vapo-Bearing technology 3 fans each 40x40x20mm nominal 6-12V operating range. 10.8CFM 27.5dBA 0.092A 1.11W Sunon Vapo-Bearing technology
Communication

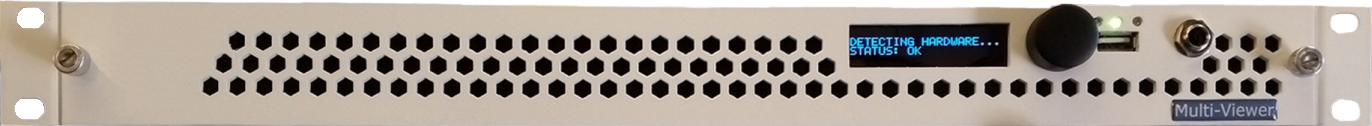

Front panel interface: Power supply and fan failure LED indicators, OLED display and control knob, USB type A port, 6.35mm stereo audio socket
Ethernet: RJ45 LAN: 100BASE-T
GPIO Global port with 8 inputs / 4 outputs per frame (assignable).
RS232/ RS422: Configurable for RS232 or RS422 serial data communications.
REF: System video reference input; HD Tri-Level sync, NTSC colour black.
LTC SMPTE-12M unbalanced. >0.5Vpp.
Environmental
Temperature:0°C to 40°C
Humidity: 30% to 90% (no condensation)
AC/DC Power Module: (90VAC ~ 264VAC), 50/60 Hz Safety Compliance: CB, CE, CCC, cUL, UL, TÜV
Max. Power Consumption: 85W at 200-240VAC, 50Hz, 0.68A
Compliance: EMC – Emissions EU: EN55103-1 USA: FCCR 47 CFR: 2009, Part 15, Sub-part B (Class A) EMC – Immunity EU: EN55103-2. Safety EN: EN60950-1 USA: Tested to UL1419 (3rd Edition) Hazardous Material UK: RoHS-6 – Complies with EU Directives
SDI Inputs
Audio Inputs
Analogue AND digital audio input capability
Analogue Up to 32 channels per card.
Digital Up to 32 AES3 (AES/EBU) pairs per card with SRC (32kHz-192kHz re-sampled to 48kHz).
NOTE: 32 AES3 pairs = 64 channels. Digital audio cards have twice the effective channel capacity of analogue cards because digital audio is transmitted as AES pairs comprising two discrete channels (though these are often just the left and right stereo components).
Input Formats
For AES transmission: 75ohm single ended terminations (unbalanced) are often used by consumer audio equipment and usually output via a phono socket. 100ohm differential terminations (balanced) are mainly used by professional audio sources and often output via a XLR socket.
AIPxxD/AIP32AD – The digital only and the analogue/digital combination audio input cards have user selectable balanced (100R)/unbalanced (75R) input terminations.
RMP-A32 Rear Interface Card
RMP-A32 This rear can be used for either audio inputs or outputs and is fitted with with two high density 44 way female ‘D’ connectors supporting a total of 32 audio channels (16 channels/connector). With the appropriate interface cable, the audio rear is capable of accepting analogue or digital audio signals.
RMP-A32 Connector
2 x High density 44-way D-type socket per RMP-A32 rear
SDI/HDMI Screen Outputs
SDI Screen Outputs
In 2K mode up to 2 x FHD50/59/60.
In 4K mode up to 2 x UHD25/29/30.
HDMI Screen Outputs
All modes output format HDMI 1.4.
In 2K mode up to 2 x FHD50/59/60 YCbCr 4:2:2 simultaneous with SDI outputs
In 4K mode up to 2 x UHD25/29/30 YCbCr 4:2:2 simultaneous with SDI outputs
SDI Output Formats
3G-SDI: SMPTE424M, 274M: 1920x1080 10-bit YCbCr 4:2:2 /60P/59.94P/50P 6G- 12G-SDI: SMPTE2081-10, 2082-10, 2036-1: 3840x2160 10-bit YCbCr 4:2:2 /30P/30P/29.97P/25P
Cable Length
Using Belden 1694A: SD-SDI >350m, HD-SDI >150m, 3G-SDI >120m
SDI Embedded Audio
SD-SDI SMPTE-274M-A, HD & 3G SDI SMPTE 299M
SDI Connector
Dual HD-BNC 75ohm
Features
Audio meters (audio pips)
Audio pips can be configured up to a maximum of 512 (including video pips) with audio sources derived from the video inputs.
Embedded Audio on Outputs
SDI or HDMI outputs can be individually configured to include up to 4 pairs of embedded audio from any of the inputs.
Audio Monitoring Out
All audio sources are fed to a routing matrix and made available for metering, embedding into the video outputs and external monitoring. A 6.35mm stereo phono socket is mounted on the SMP-AMxx front panel for local monitoring of two channels of audio.
Alarms
Audio Carrier Loss, Audio Silence, Audio Over/Under threshold, Audio Phase Error, Audio mono
Alarm Outputs
Hard and Soft Alarm outputs Soft Outputs via LAN and/or SNMP
Audio Channel Names
The name of each audio channel can be edited, names entered will be displayed below the meter bars if the labelling for the meter is set to Text in the Edit Object Properties of the tile that the meter is in.
Clocks/Dates
Analogue and Digital Clocks with foreground and background colours. Date can be displayed with clocks. Clock/date display data can be derived from several sources; the system clock, NTP synchronisation, LTC, or VITC from a chosen SDI input. Time-zone and offset settings.
Battery Backup
A non-rechargeable battery ensures the time and date settings are retained if power is lost or the unit is powered down.
Time reference
LTC input or NTP (network protocol) Nominal 1V pk-pk HD-BNC High-Pass 47uF/1K ohm.
Genlock Reference
BB/Tri-level sync nominal 1V pk-pk HD-BNC 75Ω
Idents
Idents, text boxes and any TrueType fonts. Any true-type font (TTF) can be installed to allow Unicode characters to be displayed correctly.
User Logo
PNG format with storage capacity up to 50MByte
Video Processing
Input Format detection
Automatic signal detection of input format.
Video processing bit-depth
Processing bit depths and data paths are minimum 10-bit.
Video processing delay
Processing delay varies between 1 and 2 frames depending on the timing relationship between the video input and video output
Multiple source scaling
Sources can be routed to any output with arbitrary scaling and location with the proviso that the number of unique video pips does not exceed the number of inputs.
High Dynamic Range
HLG, PQ and S-Log3 HDR formats supported. BT2100 up-mapping/down-mapping
Maximum pips
A maximum of 512 unique tiles can be configured per output. The maximum number of video pips is limited to the number of video sources.
