MP2-MVxx
Why choose this model?
- Enterprise Class multiviewer
- Configurable
- Fully Featured
- Compact 3RU size
- All Modular Cards
- High density multiviewer
- Up to 16 SDI head outputs
- Up to 4 HDMI 2.0 outputs
- Cost effective
- UHD inputs and Outputs
Complete solution
This model is a fully-featured broadcast-quality multiviewer in compact 3RU format with up to 144 inputs via HD-BNC and support for inputs up to UHD (12G-SDI) SMPTE-424M.
For 2K FHD operation - up to 8 independent outputs are
supported with one MVC4 or 16 outputs if a second MVC4 is fitted.
For 4K FHD operation - up to 2 independent outputs are
supported with one MVC4 or 4 outputs if a second MVC4 is fitted.
All image processing and control cards are modular and
hot-swappable.
MV may be configured to support 16 to 144 inputs in steps of
16 and 8 or 16 head outputs (with a 2nd MVC4 fitted)
Sources can be displayed on any output screen with arbitrary size and location. Sources may be duplicated in the same
location on any or ALL screens without consuming additional scaler resources.
Power supplies with IEC inlets are hot-swappable and power sharing. Intelligent power supply modules are continuously logged for status, temperature and efficiency.
Quiet low-noise fans adapt to frame temperature. Remote control over ethernet via an integrated HTML5 browser.
A long-life colour touch screen LCD displays MV and source status and can be used for local control.
Ubiquitous HTML5 control
The integrated web-browser uses ubiquitous HTML5 for maximum interoperability.

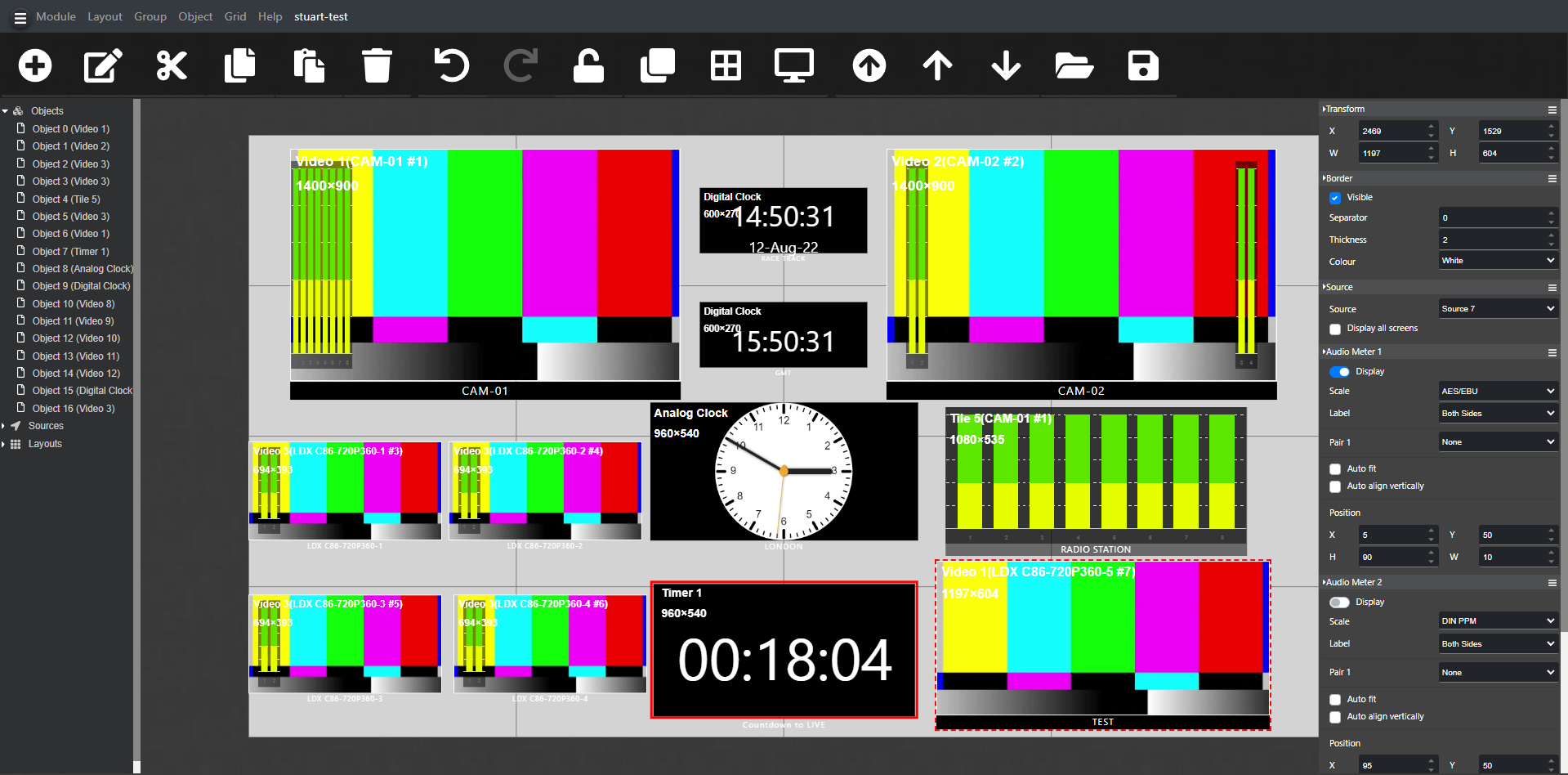

Tiles are created and customised in the layout workspace. Navigation is simple and intuitive using the Object selection
filter on the left panel.
The main parameters for each object can be quickly adjusted on the right hand panel with changes reflected immediately on the layout before committing to the multiviewer.
The control software is offered free of charge, including future updates for the longevity of the product.
Great features
Up to 16 audio channels can be configured for each source. Dolby E Metadata can be configured with up to 8 channels per source pair.

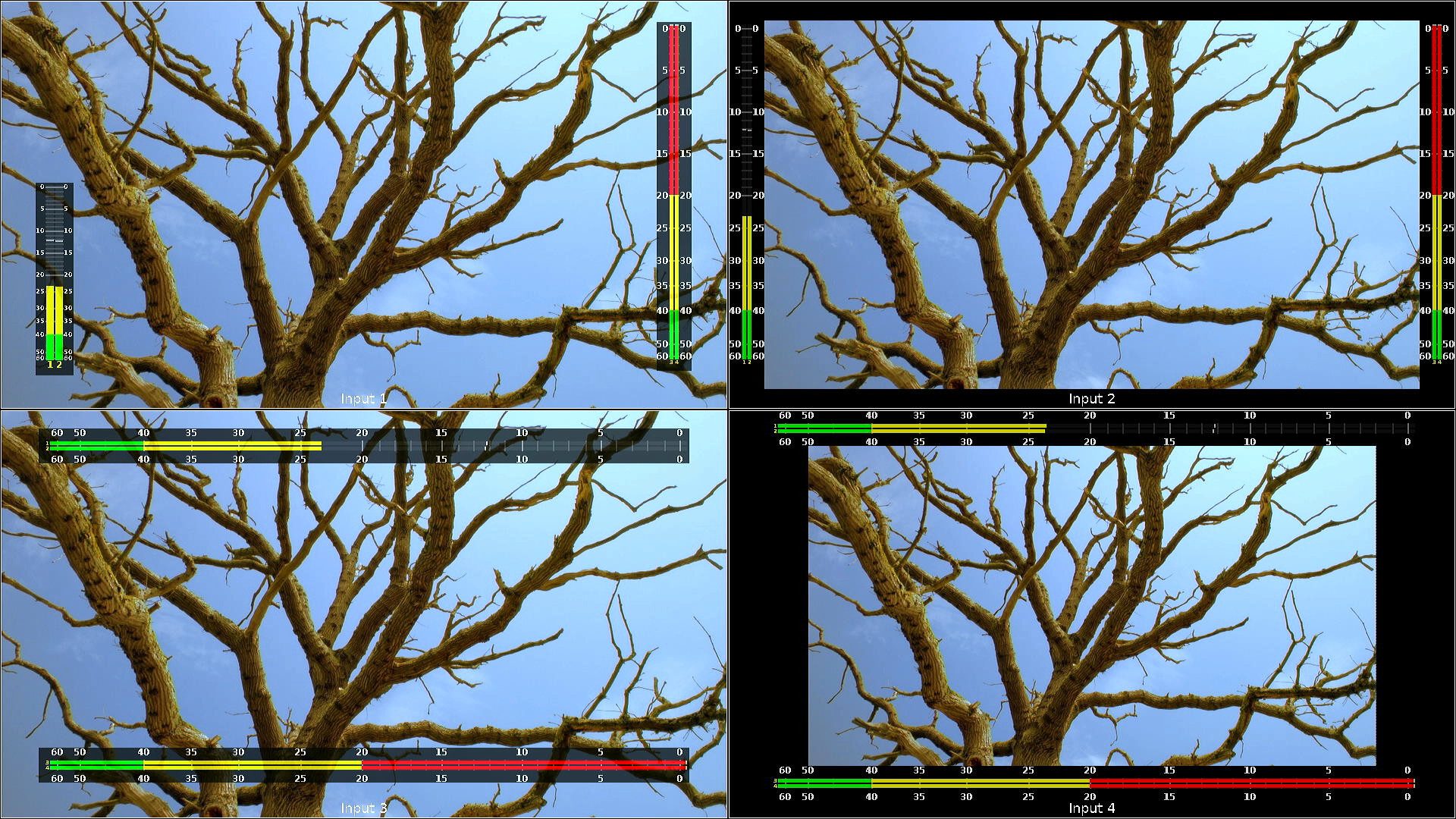

As shown above, meters can be horizontal or vertical and located inside or outside of the image whilst still maintaining the correct aspect ratio.
There is no restriction on the size and location of any of the
objects which can be of type: Video, Audio, Text, Clock, Logo or Timer up to a maximum of 128 tiles.
Clock/date display data can be derived from the system clock, NTP synchronisation, LTC, or VITC from a chosen SDI input.
D-VITC and ATC decoding and display is supported.
The multiviewer includes a number of factory layouts. Customised layouts can be stored and recalled as required.
Hardware and software tallies for each source. Up to two lines of UMD text can be left, centre, or right justified and may be placed anywhere in the tile.
UNICODE is used for storing UMDs. Any True-Type font can be installed to allow any set of characters to be displayed.
Specifications
Dimensions
Size: 440(W) x 132(H) x 472(D) mm Size: 484(W) x 132(H) x 472(D) mm with rack mount brackets Frame Weight: 9.5 kg (two PSUs) Shipping Weight: 12.65 kg
Cooling Fans
4 fans each 80x80x20mm nominal 6-12V operating range. 60 CFM 44.7dBA 0.31A 4.1W Sunon Vapo-Bearing technology 3 fans each 40x40x20mm nominal 6-12V operating range. 10.8CFM 27.5dBA 0.092A 1.11W Sunon Vapo-Bearing technology
Communication
GPIO: High-density 44-way D-type. Assignable 32xGPIO Inputs, 8xGPIO Outputs.
Primary Control: RJ45 LAN: 100BASE-T
Secondary (Firmware Update only): RJ45 LAN: 100BASE-T
RS422 & RS485:1 x RJ45
Environmental
Temperature:0°C to 40°C
Humidity: 30% to 90% (no condensation)
AC/DC Power Module: (90VAC ~ 264VAC), 50/60 Hz Safety Compliance: CB, CE, CCC, cUL, UL, TÜV
Max. Power Consumption: 450W at 200-240VAC, 50Hz, 2.1A
Compliance: EMC – Emissions EU: EN55103-1 USA: FCCR 47 CFR: 2009, Part 15, Sub-part B (Class A) EMC – Immunity EU: EN55103-2. Safety EN: EN60950-1 USA: Tested to UL1419 (3rd Edition) Hazardous Material UK: RoHS-6 – Complies with EU Directives
SDI Inputs
Video Inputs
MP2-MVxx-: up to 144 inputs with maximum resolution of UHD50/59/60 depending on rear option fitted.
VIP5-R16-3G: Rear Module card for VIP5 with 16 x HDBNC up to 3G-SDI: SMPTE424M
VIP5-R16-12G: Rear Module card for VIP5 with 16 x HDBNC up to 12G-SDI: SMPTE ST-2082
Input Formats
SD-SDI: SMPTE259M, 125M: 525/60i, 625/50i YCbCr 4:2:2
1.5G-3G-SDI: SMPTE292M, 424M, 274M: 1920x1080 10-bit YCbCr 4:2:2 /60P/59.94P/50P/60i/59.94i/50i/30P/29.97P/25P/24P/23.98P
6G-12G-SDI: SMPTE2081-10, 2082-10, 2036-1: 3840x2160 10-bit YCbCr 4:2:2 /60P/59.94P/50P/30P/29.97P/25P/24P/23.98P,
12G-SDI (SMPTE ST2082 12Gbit/s
Cable Length
Using Belden 1694A: SD-SDI >350m, HD-SDI >150m, 3G-SDI >120m, 12G-SDI >50m
SDI SMPTE Return Loss
Using Belden 1694A: SD-SDI >350m, HD-SDI >150m, 3G-SDI >120m, 12G-SDI >50m
SDI Embedded Audio
SD-SDI SMPTE-274M-A, HD & 3G SDI SMPTE 299M
SDI Connector
Dual HD-BNC 75ohm
SDI/HDMI Screen Outputs
SDI Screen Outputs
Each MVC4 fitted:
In 2K mode up to 8 x FHD50/59/60.
In 4K mode up to 2 x UHD50/59/60.
HDMI Screen Outputs
Duplicates of SDI outputs. Up to 4 x UHD50/59/60 YCbCr 4:2:2 10-bit. HDMI 2.0
SDI Output Formats
Each MVC4 fitted:
8 x SDI outputs configured as: HD-SDI (SMPTE292M 1.5Gbs), 3G-SDI (SMPTE424M 3Gbs), 2 x SDI outputs when configured as: 12G-SDI (SMPTE ST2082 12Gbit/s
Cable Length
Using Belden 1694A: SD-SDI >350m, HD-SDI >150m, 3G-SDI >120m, 12G-SDI >50m
SDI Embedded Audio
SD-SDI SMPTE-274M-A, HD & 3G SDI SMPTE 299M
SDI Connector
Dual HD-BNC 75ohm
Features
Audio meters (video pips)
Each video pip can have its own audio meters with left/right or split meters All pairs of embedded audio can be displayed.
Audio meters (audio pips)
Audio pips can be configured up to a maximum of 512 (including video pips) with audio sources derived from the video inputs.
Embedded Audio on Outputs
SDI or HDMI outputs can be individually configured to include up to 4 pairs of embedded audio from any of the inputs.
Audio Monitoring Out
SMP/SMP2 frames only: 1 Pair of embedded audio from any input can be monitored on an 3.5mm stereo analogue line level output.
Alarms
Video Loss, Video Freeze, Video Black, Over/Under, Audio Carrier Loss, Audio Silence, Audio Over/Under threshold, Audio Phase Error, Audio mono, Source Metadata (EIA-608 encapsulated in EIA-708. CC, WST, OP-47, D-VITC, ATC loss and CRC errors). Zone based monitoring inside the pip to detect video freeze and Black. Audio loudness out of range
Alarms
Video Loss, Video Freeze, Video Black, Over/Under, Audio Carrier Loss, Audio Silence, Audio Over/Under threshold, Audio Phase Error, Audio mono, Source Metadata (EIA-608 encapsulated in EIA-708. CC, WST, OP-47, D-VITC, ATC loss and CRC errors). Zone based monitoring inside the pip to detect video freeze and Black. Audio loudness out of range
Tallies
Hard Tally (via GPIO up to a maximum of 32). Soft Tally (TSL v5.0 protocol over ethernet) with 2 tallies per tile.
Tallies
Hard Tally (via GPIO up to a maximum of 32). Soft Tally (TSL v5.0 protocol over ethernet) with 2 tallies per tile.
Clocks/Dates
Analogue and Digital Clocks with foreground and background colours. Date can be displayed with clocks. Clock/date display data can be derived from several sources; the system clock, NTP synchronisation, LTC, or VITC from a chosen SDI input. Time-zone and offset settings.
Clocks/Dates
Analogue and Digital Clocks with foreground and background colours. Date can be displayed with clocks. Clock/date display data can be derived from several sources; the system clock, NTP synchronisation, LTC, or VITC from a chosen SDI input. Time-zone and offset settings.
Battery Backup
A non-rechargeable battery ensures the time and date settings are retained if power is lost or the unit is powered down.
Battery Backup
A non-rechargeable battery ensures the time and date settings are retained if power is lost or the unit is powered down.
Time reference
LTC input or NTP (network protocol) Nominal 1V pk-pk HD-BNC High-Pass 47uF/1K ohm.
Time reference
LTC input or NTP (network protocol) Nominal 1V pk-pk HD-BNC High-Pass 47uF/1K ohm.
Aspect Ratio
Automatic adjustment using AFD decoding.
Aspect Ratio
Automatic adjustment using AFD decoding.
Idents
Idents, text boxes and any TrueType fonts. Any true-type font (ttf) can be installed to allow Unicode characters to be displayed correctly.
User Logo
PNG format with storage capacity up to 50MByte
Video Processing
Input Format detection
Automatic signal detection of input format.
Video processing bit-depth
Internal bit depths and data paths are minimum 10-bit.
Video processing delay
Processing delay varies between 1 and 2 frames depending on the timing relationship between the video input and video output
Multiple source scaling
Sources can be routed to any output with arbitrary scaling and location with the proviso that the number of unique video pips does not exceed the number of inputs.
High Dynamic Range
HLG, PQ and S-Log3 HDR formats supported. BT2100 up-mapping/down-mapping
Maximum pips
A maximum of 512 unique tiles can be configured per output. The maximum number of video pips is limited to the number of video sources.
